Kustomize : Configuration Management

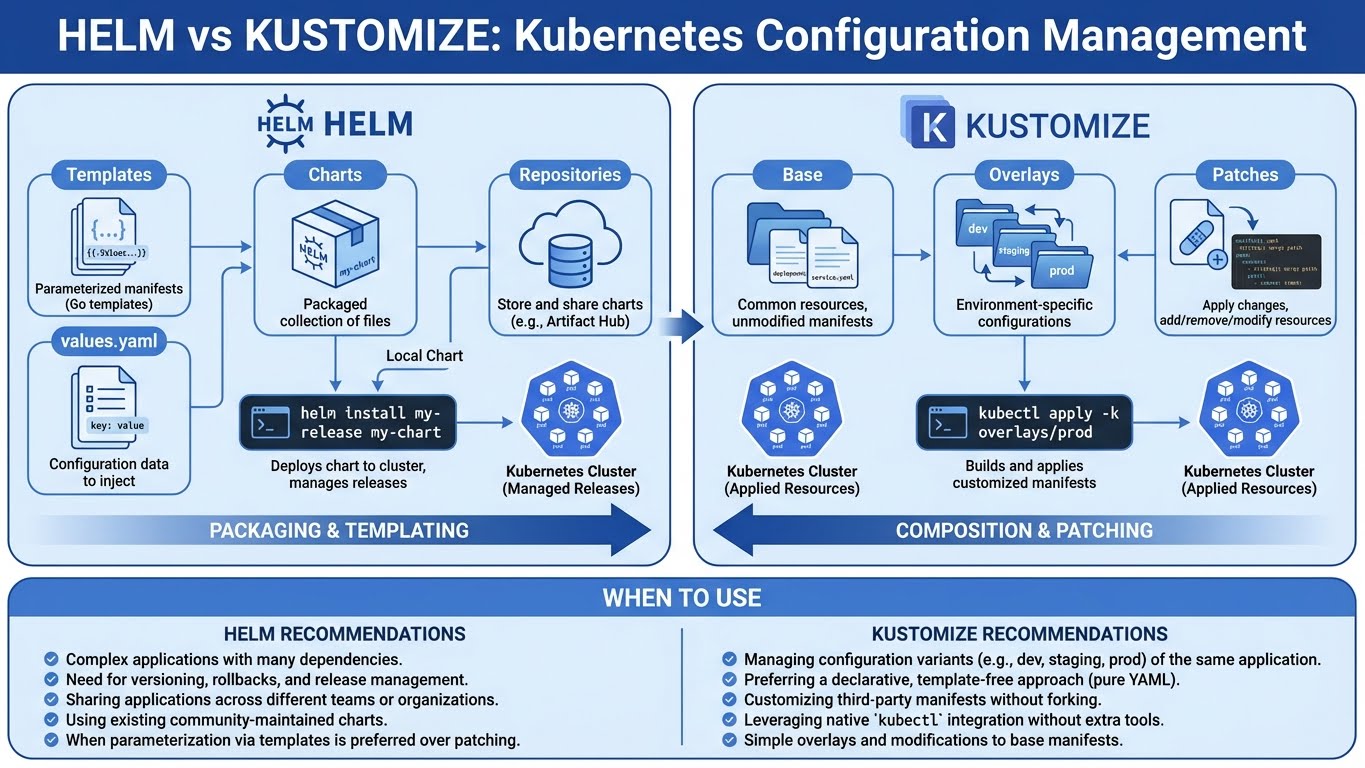

Helm vs Kustomize

Kustomize : Configuration sans Template

Kustomize est un outil de gestion de configuration Kubernetes natif (intégré à kubectl). Contrairement à Helm qui utilise des templates, Kustomize fonctionne par overlays (superposition de patchs).

Philosophie : Template vs Overlay

Critère	Helm (Template)	Kustomize (Overlay)
Approche	Variables + Go Templates	Manifests YAML purs + Patchs
Complexité	Courbe d'apprentissage (Go Template)	Simple (patchs JSON/YAML)
Réutilisabilité	Charts partagés (Artifact Hub)	Bases réutilisables (Git)
GitOps	Nécessite render (helm template)	Natif (manifests versionnés)
Customisation	values.yaml (limité aux variables exposées)	Patchs libres (tout peut être modifié)
Use Case	Packaging d'apps tierces	Config multi-envs (dev/staging/prod)

Helm ET Kustomize ?

Ils sont complémentaires ! Approche courante :

Helm : Déployer des apps tierces (PostgreSQL, Nginx, Prometheus)
Kustomize : Gérer les configs de vos apps custom (dev/staging/prod)

Architecture Kustomize

graph TD
    A[Base<br/>nginx deployment<br/>replica: 1] --> C[Overlay Dev]
    A --> D[Overlay Staging]
    A --> E[Overlay Prod]

    C --> F[Dev Cluster<br/>replica: 1<br/>limits: low]
    D --> G[Staging Cluster<br/>replica: 2<br/>limits: medium]
    E --> H[Prod Cluster<br/>replica: 3<br/>limits: high<br/>+ HPA]

    style A fill:#2196F3,stroke:#005a9e,color:#fff
    style C fill:#FF9800800800,stroke:#d39300,color:#000
    style D fill:#FF9800800800,stroke:#d39300,color:#000
    style E fill:#FF9800800800,stroke:#a52a00,color:#fff
    style H fill:#4CAF50,stroke:#0b5a0d,color:#fff

Installation

# Kustomize est intégré à kubectl (1.14+)
kubectl version --client
# Si kubectl >= 1.14, kustomize est disponible via -k

# Ou installer kustomize standalone
curl -s "https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh" | bash

# macOS
brew install kustomize

# Vérifier
kustomize version
# v5.3.0

Structure de Base

Créer une Base

# Créer la structure
mkdir -p myapp/base
cd myapp/base

# Créer un deployment
cat > deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.25
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: 50m
            memory: 64Mi
EOF

# Créer un service
cat > service.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  selector:
    app: nginx
  ports:
  - port: 80
    targetPort: 80
EOF

# Créer le kustomization.yaml
cat > kustomization.yaml <<EOF
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - deployment.yaml
  - service.yaml

commonLabels:
  managed-by: kustomize
EOF

Visualiser la Base

# Voir les manifests générés
kustomize build base/
# Ou avec kubectl
kubectl kustomize base/

# Sortie : deployment.yaml + service.yaml avec les labels ajoutés

Overlays : Multi-Environnements

Créer un Overlay Dev

mkdir -p myapp/overlays/dev

cat > myapp/overlays/dev/kustomization.yaml <<EOF
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

# Référencer la base
bases:
  - ../../base

# Ajouter un suffix au nom des ressources
nameSuffix: -dev

# Ajouter des labels spécifiques à dev
commonLabels:
  environment: dev

# Pas besoin de changer les replicas (1 en dev = OK)
EOF

# Voir le résultat
kubectl kustomize myapp/overlays/dev/
# Les ressources s'appellent maintenant : nginx-dev
# Labels : environment=dev, managed-by=kustomize

Créer un Overlay Prod

mkdir -p myapp/overlays/prod

# Créer un patch pour augmenter les replicas
cat > myapp/overlays/prod/replica-patch.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  replicas: 3
EOF

# Créer un patch pour les resources
cat > myapp/overlays/prod/resources-patch.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  template:
    spec:
      containers:
      - name: nginx
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
          limits:
            cpu: 200m
            memory: 256Mi
EOF

# Kustomization prod
cat > myapp/overlays/prod/kustomization.yaml <<EOF
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

bases:
  - ../../base

nameSuffix: -prod

commonLabels:
  environment: prod

# Appliquer les patchs
patchesStrategicMerge:
  - replica-patch.yaml
  - resources-patch.yaml

# Changer l'image (tag prod)
images:
  - name: nginx
    newTag: 1.25-alpine

# Ajouter un HPA (Horizontal Pod Autoscaler)
resources:
  - hpa.yaml
EOF

# Créer le HPA
cat > myapp/overlays/prod/hpa.yaml <<EOF
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: nginx
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: nginx
  minReplicas: 3
  maxReplicas: 10
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 80
EOF

# Voir le résultat prod
kubectl kustomize myapp/overlays/prod/

Fichier kustomization.yaml : Analyse

Champs Principaux

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

# 1. RESOURCES : Fichiers YAML à inclure
resources:
  - deployment.yaml
  - service.yaml
  - https://raw.githubusercontent.com/example/manifests/main/configmap.yaml  # URL

# 2. BASES : Référencer d'autres kustomizations (héritage)
bases:
  - ../../base
  - github.com/mycompany/k8s-commons/nginx?ref=v1.2.3  # Remote

# 3. COMMON LABELS/ANNOTATIONS
commonLabels:
  app: nginx
  team: platform
commonAnnotations:
  managed-by: kustomize

# 4. NAME/NAMESPACE TRANSFORMERS
namePrefix: staging-
nameSuffix: -v2
namespace: production

# 5. IMAGES : Modifier les images (tag, registry)
images:
  - name: nginx
    newName: registry.example.com/nginx
    newTag: 1.25-alpine

# 6. REPLICAS : Override replicas
replicas:
  - name: nginx
    count: 5

# 7. PATCHES
patchesStrategicMerge:
  - patch-deployment.yaml

patchesJson6902:
  - target:
      group: apps
      version: v1
      kind: Deployment
      name: nginx
    patch: |-
      - op: replace
        path: /spec/replicas
        value: 10

# 8. CONFIG/SECRET GENERATORS
configMapGenerator:
  - name: app-config
    files:
      - config.properties
    literals:
      - LOG_LEVEL=info

secretGenerator:
  - name: app-secret
    files:
      - credentials.txt
    literals:
      - DB_PASSWORD=supersecret

# 9. GENERATORS OPTIONS
generatorOptions:
  disableNameSuffixHash: false  # Ajoute un hash au nom (pour rolling updates)

Types de Patchs

Strategic Merge Patch (Recommandé)

# patch-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  template:
    spec:
      containers:
      - name: nginx
        env:
        - name: LOG_LEVEL
          value: debug

JSON Patch (RFC 6902)

patchesJson6902:
  - target:
      kind: Deployment
      name: nginx
    patch: |-
      - op: add
        path: /spec/template/spec/containers/0/env
        value:
          - name: LOG_LEVEL
            value: debug

JSON Merge Patch (RFC 7386)

patchesStrategicMerge:
  - |-
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nginx
    spec:
      replicas: 5

ConfigMap/Secret Generators

ConfigMap depuis Fichiers

# Créer un fichier de config
cat > myapp/overlays/prod/app.properties <<EOF
database.host=postgres.prod.svc.cluster.local
database.port=5432
cache.enabled=true
EOF

# Kustomization
cat >> myapp/overlays/prod/kustomization.yaml <<EOF
configMapGenerator:
  - name: app-config
    files:
      - app.properties
EOF

# Résultat :
kubectl kustomize myapp/overlays/prod/ | grep -A 10 "kind: ConfigMap"
# apiVersion: v1
# kind: ConfigMap
# metadata:
#   name: app-config-6ft4b8m2k9  # Hash ajouté automatiquement
# data:
#   app.properties: |
#     database.host=postgres.prod.svc.cluster.local
#     database.port=5432
#     cache.enabled=true

Secret depuis Literals

secretGenerator:
  - name: db-credentials
    type: Opaque
    literals:
      - username=admin
      - password=supersecret

Secrets en Clair dans Git ?

JAMAIS ! Les secrets doivent être :

Chiffrés : SOPS, Sealed Secrets, git-crypt
Externalisés : Vault, AWS Secrets Manager, Azure Key Vault
Générés : External Secrets Operator

Déploiement

Avec kubectl

# Dev
kubectl apply -k myapp/overlays/dev/

# Prod
kubectl apply -k myapp/overlays/prod/

# Voir le diff avant d'appliquer
kubectl diff -k myapp/overlays/prod/

# Supprimer
kubectl delete -k myapp/overlays/prod/

Avec kustomize + kubectl

# Générer les manifests et appliquer
kustomize build myapp/overlays/prod/ | kubectl apply -f -

# Sauvegarder les manifests générés (pour audit)
kustomize build myapp/overlays/prod/ > manifests-prod.yaml
git add manifests-prod.yaml

GitOps avec ArgoCD/Flux

ArgoCD Application

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: myapp-prod
  namespace: argocd
spec:
  project: default
  source:
    repoURL: https://github.com/mycompany/k8s-apps
    targetRevision: main
    path: myapp/overlays/prod  # Pointer vers l'overlay
  destination:
    server: https://kubernetes.default.svc
    namespace: production
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

Flux Kustomization

apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: myapp-prod
  namespace: flux-system
spec:
  interval: 5m
  path: ./myapp/overlays/prod
  prune: true
  sourceRef:
    kind: GitRepository
    name: k8s-apps

Exemple Concret : Application 3-Tiers

Structure Complète

myapp/
├── base/
│   ├── kustomization.yaml
│   ├── frontend/
│   │   ├── deployment.yaml
│   │   ├── service.yaml
│   │   └── ingress.yaml
│   ├── backend/
│   │   ├── deployment.yaml
│   │   ├── service.yaml
│   │   └── configmap.yaml
│   └── database/
│       ├── statefulset.yaml
│       ├── service.yaml
│       └── pvc.yaml
├── overlays/
│   ├── dev/
│   │   ├── kustomization.yaml
│   │   ├── frontend-replica-patch.yaml
│   │   └── database-storage-patch.yaml
│   ├── staging/
│   │   ├── kustomization.yaml
│   │   └── resources-patch.yaml
│   └── prod/
│       ├── kustomization.yaml
│       ├── frontend-hpa.yaml
│       ├── backend-hpa.yaml
│       ├── database-backup-cronjob.yaml
│       └── network-policy.yaml

Base : kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - frontend/deployment.yaml
  - frontend/service.yaml
  - frontend/ingress.yaml
  - backend/deployment.yaml
  - backend/service.yaml
  - backend/configmap.yaml
  - database/statefulset.yaml
  - database/service.yaml
  - database/pvc.yaml

commonLabels:
  app: myapp
  managed-by: kustomize

Overlay Prod : kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

bases:
  - ../../base

namespace: production
nameSuffix: -prod

commonLabels:
  environment: prod

replicas:
  - name: frontend
    count: 3
  - name: backend
    count: 2

images:
  - name: frontend
    newTag: v2.5.1
  - name: backend
    newTag: v1.8.3

resources:
  - frontend-hpa.yaml
  - backend-hpa.yaml
  - database-backup-cronjob.yaml
  - network-policy.yaml

configMapGenerator:
  - name: backend-config
    files:
      - prod-config.yaml

secretGenerator:
  - name: db-credentials
    literals:
      - username=produser
      - password=changeme  # ⚠️ À chiffrer avec SOPS !

Best Practices

1. Structure DRY (Don't Repeat Yourself)

# Mauvais : Dupliquer les manifests dans chaque overlay
overlays/
├── dev/
│   ├── deployment.yaml (copie complète)
│   └── service.yaml (copie complète)
└── prod/
    ├── deployment.yaml (copie complète)
    └── service.yaml (copie complète)

# Bon : Base + Patchs
base/
├── deployment.yaml
└── service.yaml
overlays/
├── dev/
│   ├── kustomization.yaml (référence base + patchs minimes)
│   └── replica-patch.yaml
└── prod/
    ├── kustomization.yaml (référence base + patchs)
    └── resources-patch.yaml

2. Versionner les Bases Externes

# Mauvais : Pointer vers main (instable)
bases:
  - github.com/mycompany/k8s-commons/nginx

# Bon : Pointer vers un tag/commit
bases:
  - github.com/mycompany/k8s-commons/nginx?ref=v1.2.3

3. Utiliser les Generators pour ConfigMap/Secret

# Mauvais : Définir manuellement
resources:
  - configmap.yaml  # Hash manuel, pas de rolling update auto

# Bon : Utiliser le generator
configMapGenerator:
  - name: app-config
    files:
      - config.properties
# Hash auto, rolling update déclenché si le contenu change

4. Séparer Secrets de la Config

# Structure
myapp/
├── base/
│   └── kustomization.yaml
└── overlays/
    └── prod/
        ├── kustomization.yaml
        ├── config.yaml          # Config non sensible (versionnée)
        └── secrets.enc.yaml     # Secrets chiffrés (SOPS/Sealed Secrets)

Dépannage

Voir les Différences entre Overlays

# Comparer dev vs prod
diff <(kubectl kustomize myapp/overlays/dev/) \
     <(kubectl kustomize myapp/overlays/prod/)

Valider avant Apply

# Dry-run avec validation
kubectl apply -k myapp/overlays/prod/ --dry-run=server --validate=true

Debug

# Verbose
kustomize build myapp/overlays/prod/ --enable-alpha-plugins --enable-helm

# Voir les transformations appliquées
kustomize build myapp/overlays/prod/ --reorder legacy

Checklist Production

# 1. Structure DRY (base + overlays)
ls -R myapp/

# 2. Pas de secrets en clair
grep -r "password" myapp/  # Doit retourner des secrets chiffrés ou générés

# 3. Images taguées (pas :latest)
grep "image:" myapp/overlays/prod/*.yaml
# Doit avoir des tags versionnés (v1.2.3, sha256:abc...)

# 4. Resources limits/requests définis
kubectl kustomize myapp/overlays/prod/ | grep -A 3 "resources:"

# 5. HPA ou replicas adaptés
kubectl kustomize myapp/overlays/prod/ | grep -E "replicas:|kind: HorizontalPodAutoscaler"

# 6. Validité des manifests
kubectl kustomize myapp/overlays/prod/ | kubectl apply --dry-run=server -f -
