Module 7 : Scheduling Avancé

Objectifs du Module

• Configurer Node Selectors et Node Affinity
• Implémenter les Taints et Tolerations
• Gérer Pod Priority et Preemption
• Configurer Resource Quotas et Limits

Durée : 2 heures

---

1. Node Selector

# Simple node selector
apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod
spec:
  nodeSelector:
    gpu: "true"
    disktype: ssd
  containers:
    - name: gpu-app
      image: nvidia/cuda

# Labelliser les nodes
kubectl label nodes worker-1 gpu=true
kubectl label nodes worker-1 disktype=ssd

# Vérifier les labels
kubectl get nodes --show-labels
kubectl get nodes -l gpu=true

---

2. Node Affinity

# Node Affinity - plus flexible que nodeSelector
apiVersion: v1
kind: Pod
metadata:
  name: affinity-pod
spec:
  affinity:
    nodeAffinity:
      # Required = must match (hard)
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                  - linux
              - key: node-type
                operator: In
                values:
                  - compute
                  - gpu

      # Preferred = try to match (soft)
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 80
          preference:
            matchExpressions:
              - key: zone
                operator: In
                values:
                  - eu-west-1a
        - weight: 20
          preference:
            matchExpressions:
              - key: instance-type
                operator: In
                values:
                  - m5.large
  containers:
    - name: app
      image: nginx

---

3. Pod Affinity et Anti-Affinity

# Pod Affinity - scheduler avec d'autres pods
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
spec:
  replicas: 3
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
    spec:
      affinity:
        # Pod Affinity: scheduler près des pods backend
        podAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchLabels:
                  app: backend
              topologyKey: kubernetes.io/hostname

        # Pod Anti-Affinity: éviter d'être sur le même node
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchLabels:
                    app: frontend
                topologyKey: kubernetes.io/hostname
      containers:
        - name: frontend
          image: nginx

---

4. Taints et Tolerations

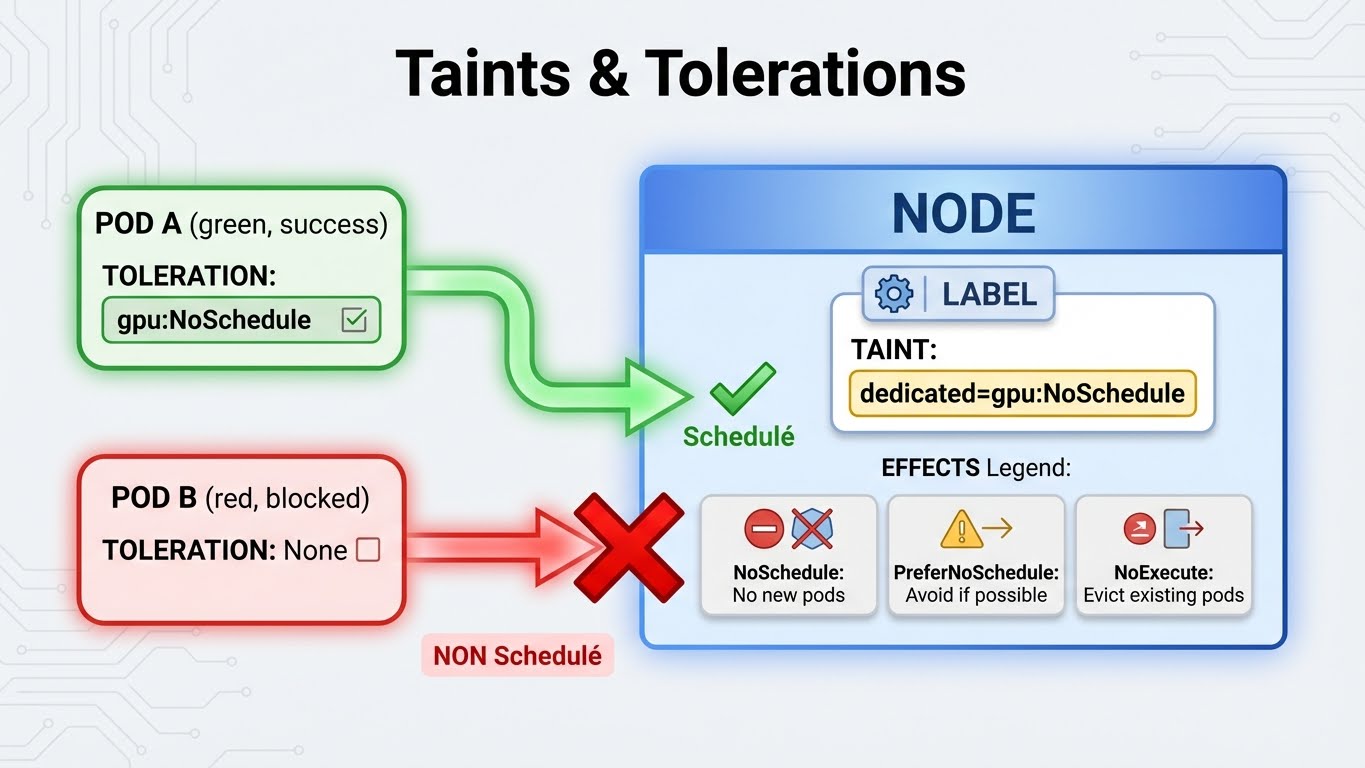

4.1 Concept

4.2 Configuration

# Ajouter un taint
kubectl taint nodes worker-1 dedicated=gpu:NoSchedule

# Voir les taints
kubectl describe node worker-1 | grep Taints

# Supprimer un taint
kubectl taint nodes worker-1 dedicated=gpu:NoSchedule-

# Pod avec toleration
apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod
spec:
  tolerations:
    - key: "dedicated"
      operator: "Equal"
      value: "gpu"
      effect: "NoSchedule"
    # Ou tolère toutes les valeurs
    - key: "dedicated"
      operator: "Exists"
      effect: "NoSchedule"
  containers:
    - name: app
      image: nvidia/cuda

---

5. Resource Quotas et LimitRange

5.1 ResourceQuota

# Quota par namespace
apiVersion: v1
kind: ResourceQuota
metadata:
  name: compute-quota
  namespace: development
spec:
  hard:
    requests.cpu: "10"
    requests.memory: 20Gi
    limits.cpu: "20"
    limits.memory: 40Gi
    pods: "20"
    services: "10"
    persistentvolumeclaims: "10"
    requests.storage: 100Gi

5.2 LimitRange

# Limites par défaut pour les containers
apiVersion: v1
kind: LimitRange
metadata:
  name: default-limits
  namespace: development
spec:
  limits:
    - type: Container
      default:
        cpu: "500m"
        memory: "256Mi"
      defaultRequest:
        cpu: "100m"
        memory: "128Mi"
      min:
        cpu: "50m"
        memory: "64Mi"
      max:
        cpu: "2"
        memory: "2Gi"

    - type: Pod
      max:
        cpu: "4"
        memory: "4Gi"

    - type: PersistentVolumeClaim
      min:
        storage: 1Gi
      max:
        storage: 50Gi

---

6. Pod Priority et Preemption

# PriorityClass
apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: high-priority
value: 1000000
globalDefault: false
preemptionPolicy: PreemptLowerPriority
description: "Critical workloads"

---
apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: low-priority
value: 1000
preemptionPolicy: Never

---
# Pod avec priorité
apiVersion: v1
kind: Pod
metadata:
  name: critical-pod
spec:
  priorityClassName: high-priority
  containers:
    - name: app
      image: nginx

---

Exercice : À Vous de Jouer

Mise en Pratique

Objectif : Maîtriser le scheduling avancé et la gestion des ressources

Contexte : Vous gérez un cluster multi-tenants où certains nodes sont équipés de GPUs coûteux. Vous devez configurer le scheduling pour que seules les applications GPU soient placées sur ces nodes, et limiter la consommation de ressources par namespace.

Tâches à réaliser :

1. Labelliser un node comme "gpu-node"
2. Appliquer un taint sur ce node pour repousser les pods normaux
3. Créer un Deployment avec toleration pour utiliser les nodes GPU
4. Configurer un ResourceQuota pour un namespace
5. Créer un LimitRange avec des limites par défaut

Critères de validation :

• [ ] Le node GPU a les labels et taints appropriés
• [ ] Les pods GPU sont schedulés uniquement sur les nodes GPU
• [ ] Les pods normaux ne sont PAS schedulés sur les nodes GPU
• [ ] Le ResourceQuota limite correctement les ressources
• [ ] Le LimitRange applique des valeurs par défaut

Solution

Étape 1 : Labelliser et tainter le node

# Lister les nodes
kubectl get nodes

# Choisir un node et le labelliser (remplacer <node-name>)
NODE_NAME=$(kubectl get nodes -o jsonpath='{.items[0].metadata.name}')
kubectl label nodes $NODE_NAME gpu=true
kubectl label nodes $NODE_NAME node-type=gpu-enabled

# Vérifier les labels
kubectl get nodes --show-labels | grep gpu

# Appliquer un taint
kubectl taint nodes $NODE_NAME dedicated=gpu:NoSchedule

# Vérifier le taint
kubectl describe node $NODE_NAME | grep -A5 Taints

Étape 2 : Créer un namespace avec quotas

# namespace-gpu.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: gpu-workloads

---
apiVersion: v1
kind: ResourceQuota
metadata:
  name: gpu-quota
  namespace: gpu-workloads
spec:
  hard:
    requests.cpu: "4"
    requests.memory: "8Gi"
    limits.cpu: "8"
    limits.memory: "16Gi"
    pods: "10"
    services: "5"

---
apiVersion: v1
kind: LimitRange
metadata:
  name: gpu-limits
  namespace: gpu-workloads
spec:
  limits:
    - type: Container
      default:
        cpu: "500m"
        memory: "512Mi"
      defaultRequest:
        cpu: "100m"
        memory: "128Mi"
      min:
        cpu: "50m"
        memory: "64Mi"
      max:
        cpu: "2"
        memory: "2Gi"

kubectl apply -f namespace-gpu.yaml
kubectl describe resourcequota gpu-quota -n gpu-workloads
kubectl describe limitrange gpu-limits -n gpu-workloads

Étape 3 : Déployer une application GPU

# gpu-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: gpu-app
  namespace: gpu-workloads
spec:
  replicas: 2
  selector:
    matchLabels:
      app: gpu-app
  template:
    metadata:
      labels:
        app: gpu-app
    spec:
      # NodeSelector pour cibler les nodes GPU
      nodeSelector:
        gpu: "true"
        node-type: gpu-enabled

      # Toleration pour le taint
      tolerations:
        - key: "dedicated"
          operator: "Equal"
          value: "gpu"
          effect: "NoSchedule"

      # Node Affinity (alternative/complément au nodeSelector)
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: gpu
                    operator: In
                    values:
                      - "true"

      containers:
        - name: app
          image: nvidia/cuda:11.8.0-base-ubuntu22.04
          command: ["sleep", "infinity"]
          resources:
            requests:
              cpu: 200m
              memory: 256Mi
            limits:
              cpu: 500m
              memory: 512Mi

kubectl apply -f gpu-deployment.yaml

# Vérifier que les pods sont sur le node GPU
kubectl get pods -n gpu-workloads -o wide
kubectl describe pod -n gpu-workloads -l app=gpu-app | grep Node:

Étape 4 : Déployer une application normale (sans GPU)

# normal-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: normal-app
  namespace: gpu-workloads
spec:
  replicas: 2
  selector:
    matchLabels:
      app: normal-app
  template:
    metadata:
      labels:
        app: normal-app
    spec:
      # Pas de toleration = ne peut pas aller sur node GPU
      containers:
        - name: app
          image: nginx:alpine
          resources:
            requests:
              cpu: 50m
              memory: 64Mi
            limits:
              cpu: 100m
              memory: 128Mi

kubectl apply -f normal-deployment.yaml

# Vérifier que les pods NE SONT PAS sur le node GPU
kubectl get pods -n gpu-workloads -o wide

Étape 5 : Test Pod Affinity/Anti-Affinity

# affinity-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
  namespace: gpu-workloads
spec:
  replicas: 3
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
        tier: frontend
    spec:
      # Anti-affinity: éviter de mettre 2 pods sur le même node
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchLabels:
                    app: frontend
                topologyKey: kubernetes.io/hostname
      containers:
        - name: frontend
          image: nginx:alpine
          resources:
            requests:
              cpu: 50m
              memory: 32Mi

kubectl apply -f affinity-deployment.yaml
kubectl get pods -n gpu-workloads -l app=frontend -o wide

Étape 6 : Tester les quotas

# Vérifier l'utilisation du quota
kubectl describe resourcequota gpu-quota -n gpu-workloads

# Essayer de dépasser le quota
kubectl create deployment quota-test --image=nginx --replicas=20 -n gpu-workloads

# Observer que certains pods restent Pending
kubectl get pods -n gpu-workloads

# Voir pourquoi
kubectl describe replicaset -n gpu-workloads | grep -A5 "exceeded quota"

Étape 7 : Test de PriorityClass

# priority.yaml
apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: high-priority
value: 1000000
globalDefault: false
description: "High priority for critical workloads"

---
apiVersion: v1
kind: Pod
metadata:
  name: high-priority-pod
  namespace: gpu-workloads
spec:
  priorityClassName: high-priority
  containers:
    - name: app
      image: nginx:alpine

kubectl apply -f priority.yaml
kubectl get priorityclass
kubectl get pod high-priority-pod -n gpu-workloads -o yaml | grep priority

Vérifications :

# Nodes et labels
kubectl get nodes --show-labels | grep gpu

# Taints
kubectl get nodes -o custom-columns=NAME:.metadata.name,TAINTS:.spec.taints

# Scheduling des pods
kubectl get pods -n gpu-workloads -o wide

# Quotas et limites
kubectl describe quota -n gpu-workloads
kubectl describe limitrange -n gpu-workloads

# Utilisation des ressources
kubectl top nodes
kubectl top pods -n gpu-workloads

Nettoyage :

# Supprimer le namespace
kubectl delete namespace gpu-workloads

# Supprimer le taint du node
kubectl taint nodes $NODE_NAME dedicated=gpu:NoSchedule-

# Supprimer les labels
kubectl label nodes $NODE_NAME gpu- node-type-

# Supprimer la PriorityClass
kubectl delete priorityclass high-priority

---

Quiz

1. Quel effet de taint expulse les pods existants ?
2. [ ] A. NoSchedule
3. [ ] B. PreferNoSchedule

4. [ ] C. NoExecute

5. Quelle affinity est obligatoire (hard) ?

6. [ ] A. preferredDuringSchedulingIgnoredDuringExecution
7. [ ] B. requiredDuringSchedulingIgnoredDuringExecution
8. [ ] C. Les deux

Réponses : 1-C, 2-B

---

Précédent : Module 6 - Sécurité

Suivant : Module 8 - Observabilité

---

Navigation

← Module 6 : Sécurité et RBAC	Module 8 : Observabilité →

Retour au Programme
