Module 9 : Helm et Packaging

Objectifs du Module

  • Comprendre les concepts Helm
  • Créer et personnaliser des Charts
  • Maîtriser les templates et values
  • Gérer les releases et repositories

Durée : 3 heures

1. Introduction à Helm

1.1 Concepts

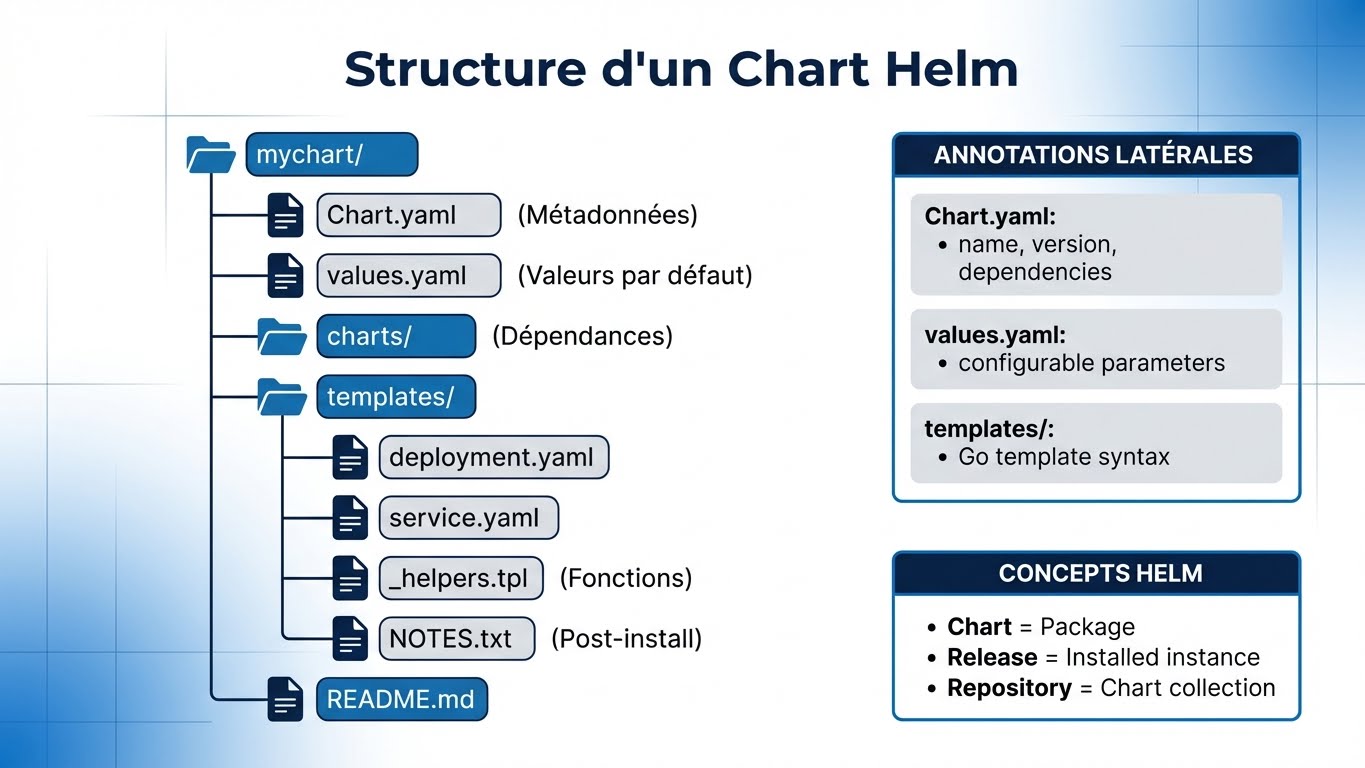

Structure d'un Chart Helm

1.2 Installation

# Installation Helm
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash

# Vérifier
helm version

# Ajouter des repositories
helm repo add bitnami https://charts.bitnami.com/bitnami
helm repo add stable https://charts.helm.sh/stable
helm repo update

# Rechercher des charts
helm search repo nginx
helm search hub wordpress

2. Utilisation de Base

2.1 Installer un Chart

# Installer depuis un repo
helm install my-nginx bitnami/nginx

# Avec namespace
helm install my-nginx bitnami/nginx -n webserver --create-namespace

# Avec fichier de values
helm install my-nginx bitnami/nginx -f my-values.yaml

# Avec values en ligne
helm install my-nginx bitnami/nginx \
  --set replicaCount=3 \
  --set service.type=NodePort

# Voir les values par défaut
helm show values bitnami/nginx

# Dry-run (prévisualisation)
helm install my-nginx bitnami/nginx --dry-run

2.2 Gérer les Releases

# Lister les releases
helm list
helm list -A  # Tous les namespaces

# Status d'une release
helm status my-nginx

# Historique
helm history my-nginx

# Upgrade
helm upgrade my-nginx bitnami/nginx --set replicaCount=5

# Rollback
helm rollback my-nginx 1

# Désinstaller
helm uninstall my-nginx

3. Créer un Chart

3.1 Structure

# Créer un nouveau chart
helm create myapp

# Structure générée
myapp/
├── Chart.yaml
├── values.yaml
├── charts/
├── templates/
│   ├── deployment.yaml
│   ├── service.yaml
│   ├── serviceaccount.yaml
│   ├── ingress.yaml
│   ├── hpa.yaml
│   ├── _helpers.tpl
│   ├── NOTES.txt
│   └── tests/
│       └── test-connection.yaml
└── .helmignore

3.2 Chart.yaml

# Chart.yaml
apiVersion: v2
name: myapp
description: A Helm chart for MyApp
type: application
version: 1.0.0
appVersion: "2.0.0"
keywords:
  - myapp
  - web
home: https://github.com/myorg/myapp
sources:
  - https://github.com/myorg/myapp
maintainers:
  - name: John Doe
    email: john@example.com
dependencies:
  - name: postgresql
    version: "12.x.x"
    repository: "https://charts.bitnami.com/bitnami"
    condition: postgresql.enabled

3.3 values.yaml

# values.yaml
replicaCount: 3

image:
  repository: myapp
  pullPolicy: IfNotPresent
  tag: ""  # Defaults to appVersion

service:
  type: ClusterIP
  port: 80

ingress:
  enabled: true
  className: nginx
  hosts:
    - host: myapp.local
      paths:
        - path: /
          pathType: Prefix
  tls:
    - secretName: myapp-tls
      hosts:
        - myapp.local

resources:
  limits:
    cpu: 500m
    memory: 256Mi
  requests:
    cpu: 100m
    memory: 128Mi

postgresql:
  enabled: true
  auth:
    database: myapp

4. Templates Helm

4.1 Syntaxe de Base

# templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ include "myapp.fullname" . }}
  labels:
    {{- include "myapp.labels" . | nindent 4 }}
spec:
  replicas: {{ .Values.replicaCount }}
  selector:
    matchLabels:
      {{- include "myapp.selectorLabels" . | nindent 6 }}
  template:
    metadata:
      labels:
        {{- include "myapp.selectorLabels" . | nindent 8 }}
    spec:
      containers:
        - name: {{ .Chart.Name }}
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag | default .Chart.AppVersion }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}
          ports:
            - name: http
              containerPort: 80
          {{- with .Values.resources }}
          resources:
            {{- toYaml . | nindent 12 }}
          {{- end }}

4.2 Helpers (_helpers.tpl)

# templates/_helpers.tpl
{{/*
Expand the name of the chart.
*/}}
{{- define "myapp.name" -}}
{{- default .Chart.Name .Values.nameOverride | trunc 63 | trimSuffix "-" }}
{{- end }}

{{/*
Create a default fully qualified app name.
*/}}
{{- define "myapp.fullname" -}}
{{- if .Values.fullnameOverride }}
{{- .Values.fullnameOverride | trunc 63 | trimSuffix "-" }}
{{- else }}
{{- $name := default .Chart.Name .Values.nameOverride }}
{{- printf "%s-%s" .Release.Name $name | trunc 63 | trimSuffix "-" }}
{{- end }}
{{- end }}

{{/*
Common labels
*/}}
{{- define "myapp.labels" -}}
helm.sh/chart: {{ include "myapp.chart" . }}
{{ include "myapp.selectorLabels" . }}
app.kubernetes.io/version: {{ .Chart.AppVersion | quote }}
app.kubernetes.io/managed-by: {{ .Release.Service }}
{{- end }}

{{/*
Selector labels
*/}}
{{- define "myapp.selectorLabels" -}}
app.kubernetes.io/name: {{ include "myapp.name" . }}
app.kubernetes.io/instance: {{ .Release.Name }}
{{- end }}

4.3 Conditionnels et Boucles

# Conditionnel
{{- if .Values.ingress.enabled }}
apiVersion: networking.k8s.io/v1
kind: Ingress
...
{{- end }}

# Boucle
{{- range .Values.ingress.hosts }}
  - host: {{ .host | quote }}
    http:
      paths:
        {{- range .paths }}
        - path: {{ .path }}
          pathType: {{ .pathType }}
        {{- end }}
{{- end }}

# With (scope)
{{- with .Values.nodeSelector }}
nodeSelector:
  {{- toYaml . | nindent 8 }}
{{- end }}

5. Helm Hooks

# Hook pre-install
apiVersion: batch/v1
kind: Job
metadata:
  name: {{ include "myapp.fullname" . }}-db-migrate
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade
    "helm.sh/hook-weight": "-5"
    "helm.sh/hook-delete-policy": hook-succeeded
spec:
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: migrate
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag }}"
          command: ["./migrate.sh"]

6. Exercice : À Vous de Jouer

Mise en Pratique

Objectif : Créer un Chart Helm complet pour une application web avec base de données, configurable pour plusieurs environnements

Contexte : Vous devez créer un Chart Helm pour déployer "BlogApp", une application de blog composée d'un frontend (React), d'un backend API (Node.js), et d'une base PostgreSQL. Le Chart doit supporter les environnements dev, staging et production avec des configurations différentes.

Tâches à réaliser :

  1. Créer la structure du Chart avec helm create
  2. Configurer le Deployment du backend avec probes et resources
  3. Ajouter PostgreSQL comme dépendance
  4. Créer un Ingress conditionnel pour chaque environnement
  5. Créer des fichiers values pour dev, staging et production
  6. Ajouter un Hook pre-install pour la migration de base de données
  7. Packager et déployer le Chart

Critères de validation :

  • [ ] helm lint passe sans erreur
  • [ ] helm template génère les manifests corrects
  • [ ] Les trois environnements ont des configurations différentes
  • [ ] L'Ingress s'active uniquement en production
  • [ ] Le Hook de migration s'exécute avant le déploiement
Solution

Étape 1 : Créer la Structure

# Créer le chart de base
helm create blogapp

cd blogapp

# Nettoyer les fichiers par défaut
rm -rf templates/tests
rm templates/serviceaccount.yaml templates/hpa.yaml

# Structure finale
tree
# blogapp/
# ├── Chart.yaml
# ├── values.yaml
# ├── values-dev.yaml
# ├── values-staging.yaml
# ├── values-prod.yaml
# ├── charts/
# └── templates/
#     ├── _helpers.tpl
#     ├── deployment.yaml
#     ├── service.yaml
#     ├── ingress.yaml
#     ├── configmap.yaml
#     ├── secret.yaml
#     ├── db-migration-hook.yaml
#     └── NOTES.txt

Étape 2 : Configurer Chart.yaml

# Chart.yaml
apiVersion: v2
name: blogapp
description: A Helm chart for BlogApp (Frontend + Backend + PostgreSQL)
type: application
version: 1.0.0
appVersion: "2.1.0"

keywords:
  - blog
  - nodejs
  - react
  - postgresql

home: https://github.com/myorg/blogapp
sources:
  - https://github.com/myorg/blogapp

maintainers:
  - name: DevOps Team
    email: devops@example.com

dependencies:
  - name: postgresql
    version: "12.x.x"
    repository: "https://charts.bitnami.com/bitnami"
    condition: postgresql.enabled
    tags:
      - database

Étape 3 : Configurer values.yaml (défaut)

# values.yaml
replicaCount: 1

image:
  repository: mycompany/blogapp-backend
  pullPolicy: IfNotPresent
  tag: ""  # Defaults to appVersion

imagePullSecrets: []
nameOverride: ""
fullnameOverride: ""

service:
  type: ClusterIP
  port: 80
  targetPort: 3000

ingress:
  enabled: false
  className: nginx
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
  hosts:
    - host: blog.local
      paths:
        - path: /
          pathType: Prefix
  tls:
    - secretName: blogapp-tls
      hosts:
        - blog.local

resources:
  limits:
    cpu: 500m
    memory: 512Mi
  requests:
    cpu: 100m
    memory: 128Mi

livenessProbe:
  httpGet:
    path: /health
    port: http
  initialDelaySeconds: 30
  periodSeconds: 10

readinessProbe:
  httpGet:
    path: /ready
    port: http
  initialDelaySeconds: 10
  periodSeconds: 5

autoscaling:
  enabled: false
  minReplicas: 2
  maxReplicas: 10
  targetCPUUtilizationPercentage: 70

nodeSelector: {}
tolerations: []
affinity: {}

# Configuration de l'application
config:
  nodeEnv: production
  logLevel: info
  port: 3000

# PostgreSQL (dépendance)
postgresql:
  enabled: true
  auth:
    username: blogapp
    password: changeme
    database: blogapp
  primary:
    persistence:
      enabled: true
      size: 10Gi

# Migration de base de données
migration:
  enabled: true
  image:
    repository: mycompany/blogapp-migrations
    tag: latest

Étape 4 : Values par Environnement

# values-dev.yaml
replicaCount: 1

image:
  tag: "dev-latest"

ingress:
  enabled: false

resources:
  limits:
    cpu: 200m
    memory: 256Mi
  requests:
    cpu: 50m
    memory: 64Mi

config:
  nodeEnv: development
  logLevel: debug

postgresql:
  auth:
    password: dev123
  primary:
    persistence:
      enabled: false  # Pas de persistence en dev

migration:
  enabled: false  # Pas de migration en dev

# values-staging.yaml
replicaCount: 2

image:
  tag: "staging-v2.1.0"

ingress:
  enabled: true
  hosts:
    - host: blog-staging.example.com
      paths:
        - path: /
          pathType: Prefix
  tls:
    - secretName: blogapp-staging-tls
      hosts:
        - blog-staging.example.com

resources:
  limits:
    cpu: 500m
    memory: 512Mi
  requests:
    cpu: 100m
    memory: 128Mi

config:
  nodeEnv: staging
  logLevel: info

postgresql:
  auth:
    password: staging-secret-pwd
  primary:
    persistence:
      enabled: true
      size: 5Gi

autoscaling:
  enabled: false

# values-prod.yaml
replicaCount: 3

image:
  tag: "v2.1.0"

ingress:
  enabled: true
  className: nginx
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/rate-limit: "100"
  hosts:
    - host: blog.example.com
      paths:
        - path: /
          pathType: Prefix
  tls:
    - secretName: blogapp-prod-tls
      hosts:
        - blog.example.com

resources:
  limits:
    cpu: 1000m
    memory: 1Gi
  requests:
    cpu: 250m
    memory: 256Mi

config:
  nodeEnv: production
  logLevel: warn

postgresql:
  enabled: true
  auth:
    existingSecret: blogapp-db-secret
  primary:
    persistence:
      enabled: true
      size: 20Gi
      storageClass: fast-ssd

autoscaling:
  enabled: true
  minReplicas: 3
  maxReplicas: 10
  targetCPUUtilizationPercentage: 70

affinity:
  podAntiAffinity:
    preferredDuringSchedulingIgnoredDuringExecution:
      - weight: 100
        podAffinityTerm:
          labelSelector:
            matchExpressions:
              - key: app.kubernetes.io/name
                operator: In
                values:
                  - blogapp
          topologyKey: kubernetes.io/hostname

Étape 5 : Templates - Deployment

# templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ include "blogapp.fullname" . }}
  labels:
    {{- include "blogapp.labels" . | nindent 4 }}
spec:
  {{- if not .Values.autoscaling.enabled }}
  replicas: {{ .Values.replicaCount }}
  {{- end }}
  selector:
    matchLabels:
      {{- include "blogapp.selectorLabels" . | nindent 6 }}
  template:
    metadata:
      annotations:
        checksum/config: {{ include (print $.Template.BasePath "/configmap.yaml") . | sha256sum }}
      labels:
        {{- include "blogapp.selectorLabels" . | nindent 8 }}
    spec:
      {{- with .Values.imagePullSecrets }}
      imagePullSecrets:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      containers:
        - name: {{ .Chart.Name }}
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag | default .Chart.AppVersion }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}
          ports:
            - name: http
              containerPort: {{ .Values.config.port }}
              protocol: TCP
          env:
            - name: NODE_ENV
              value: {{ .Values.config.nodeEnv | quote }}
            - name: LOG_LEVEL
              value: {{ .Values.config.logLevel | quote }}
            - name: PORT
              value: {{ .Values.config.port | quote }}
            - name: DATABASE_HOST
              value: {{ include "blogapp.fullname" . }}-postgresql
            - name: DATABASE_PORT
              value: "5432"
            - name: DATABASE_NAME
              value: {{ .Values.postgresql.auth.database | quote }}
            - name: DATABASE_USER
              value: {{ .Values.postgresql.auth.username | quote }}
            - name: DATABASE_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: {{ include "blogapp.fullname" . }}-postgresql
                  key: password
          {{- with .Values.livenessProbe }}
          livenessProbe:
            {{- toYaml . | nindent 16 }}
          {{- end }}
          {{- with .Values.readinessProbe }}
          readinessProbe:
            {{- toYaml . | nindent 16 }}
          {{- end }}
          resources:
            {{- toYaml .Values.resources | nindent 16 }}
      {{- with .Values.nodeSelector }}
      nodeSelector:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      {{- with .Values.affinity }}
      affinity:
        {{- toYaml . | nindent 8 }}
      {{- end }}
      {{- with .Values.tolerations }}
      tolerations:
        {{- toYaml . | nindent 8 }}
      {{- end }}

Étape 6 : Hook de Migration

# templates/db-migration-hook.yaml
{{- if .Values.migration.enabled }}
apiVersion: batch/v1
kind: Job
metadata:
  name: {{ include "blogapp.fullname" . }}-db-migrate
  labels:
    {{- include "blogapp.labels" . | nindent 4 }}
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade
    "helm.sh/hook-weight": "-5"
    "helm.sh/hook-delete-policy": before-hook-creation
spec:
  backoffLimit: 3
  template:
    metadata:
      labels:
        {{- include "blogapp.selectorLabels" . | nindent 12 }}
    spec:
      restartPolicy: Never
      containers:
        - name: db-migrate
          image: "{{ .Values.migration.image.repository }}:{{ .Values.migration.image.tag }}"
          command:
            - /bin/sh
            - -c
            - |
              echo "Running database migrations..."
              npm run migrate
              echo "Migrations completed successfully"
          env:
            - name: DATABASE_HOST
              value: {{ include "blogapp.fullname" . }}-postgresql
            - name: DATABASE_PORT
              value: "5432"
            - name: DATABASE_NAME
              value: {{ .Values.postgresql.auth.database | quote }}
            - name: DATABASE_USER
              value: {{ .Values.postgresql.auth.username | quote }}
            - name: DATABASE_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: {{ include "blogapp.fullname" . }}-postgresql
                  key: password
{{- end }}

Étape 7 : Templates - Ingress

# templates/ingress.yaml
{{- if .Values.ingress.enabled }}
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: {{ include "blogapp.fullname" . }}
  labels:
    {{- include "blogapp.labels" . | nindent 4 }}
  {{- with .Values.ingress.annotations }}
  annotations:
    {{- toYaml . | nindent 4 }}
  {{- end }}
spec:
  {{- if .Values.ingress.className }}
  ingressClassName: {{ .Values.ingress.className }}
  {{- end }}
  {{- if .Values.ingress.tls }}
  tls:
    {{- range .Values.ingress.tls }}
    - hosts:
        {{- range .hosts }}
        - {{ . | quote }}
        {{- end }}
      secretName: {{ .secretName }}
    {{- end }}
  {{- end }}
  rules:
    {{- range .Values.ingress.hosts }}
    - host: {{ .host | quote }}
      http:
        paths:
          {{- range .paths }}
          - path: {{ .path }}
            pathType: {{ .pathType }}
            backend:
              service:
                name: {{ include "blogapp.fullname" $ }}
                port:
                  number: {{ $.Values.service.port }}
          {{- end }}
    {{- end }}
{{- end }}

Étape 8 : NOTES.txt

# templates/NOTES.txt
🎉 BlogApp a été déployé avec succès !

Application: {{ include "blogapp.fullname" . }}
Namespace: {{ .Release.Namespace }}
Version: {{ .Chart.AppVersion }}

{{- if .Values.ingress.enabled }}

🌐 L'application est accessible via :
{{- range .Values.ingress.hosts }}
  https://{{ .host }}
{{- end }}
{{- else }}

Pour accéder à l'application localement :

  export POD_NAME=$(kubectl get pods --namespace {{ .Release.Namespace }} -l "app.kubernetes.io/name={{ include "blogapp.name" . }},app.kubernetes.io/instance={{ .Release.Name }}" -o jsonpath="{.items[0].metadata.name}")
  kubectl port-forward $POD_NAME 8080:{{ .Values.config.port }}

  Visitez http://127.0.0.1:8080
{{- end }}

📊 Commandes utiles :

  # Voir les pods
  kubectl get pods -l app.kubernetes.io/name={{ include "blogapp.name" . }}

  # Voir les logs
  kubectl logs -l app.kubernetes.io/name={{ include "blogapp.name" . }} -f

  # Statut de la release
  helm status {{ .Release.Name }}

Étape 9 : Validation et Déploiement

# Installer les dépendances
helm dependency update

# Lint le chart
helm lint .
helm lint . -f values-dev.yaml
helm lint . -f values-prod.yaml

# Voir le YAML généré (dev)
helm template blogapp . -f values-dev.yaml > /tmp/dev-manifests.yaml
less /tmp/dev-manifests.yaml

# Voir le YAML généré (prod)
helm template blogapp . -f values-prod.yaml > /tmp/prod-manifests.yaml
diff /tmp/dev-manifests.yaml /tmp/prod-manifests.yaml

# Dry-run
helm install blogapp-dev . -f values-dev.yaml --dry-run --debug

# Packager
cd ..
helm package blogapp
# Résultat: blogapp-1.0.0.tgz

# Déployer en dev
helm install blogapp-dev ./blogapp -f blogapp/values-dev.yaml \
  --namespace dev \
  --create-namespace

# Déployer en staging
helm install blogapp-staging ./blogapp -f blogapp/values-staging.yaml \
  --namespace staging \
  --create-namespace

# Déployer en production
helm install blogapp-prod ./blogapp -f blogapp/values-prod.yaml \
  --namespace production \
  --create-namespace

# Vérifier les releases
helm list -A

# Voir les différences entre environnements
helm get values blogapp-dev -n dev
helm get values blogapp-prod -n production

# Tester une upgrade
helm upgrade blogapp-dev ./blogapp -f blogapp/values-dev.yaml \
  --namespace dev \
  --set image.tag=dev-v2.1.1

# Rollback si nécessaire
helm rollback blogapp-dev 1 -n dev

Validation Complète

# 1. Vérifier que tout est déployé
kubectl get all -n dev
kubectl get all -n staging
kubectl get all -n production

# 2. Vérifier PostgreSQL
kubectl get pods -l app.kubernetes.io/name=postgresql -n production

# 3. Vérifier le Hook de migration
kubectl get jobs -n production
kubectl logs -l job-name -n production

# 4. Vérifier l'Ingress (prod uniquement)
kubectl get ingress -n production

# 5. Test de l'application
kubectl run test --rm -it --image=curlimages/curl -n production -- sh
# Dans le pod:
# curl http://blogapp-prod:80/health

# 6. Historique des releases
helm history blogapp-dev -n dev
helm history blogapp-prod -n production

Quiz

  1. Où sont stockées les valeurs par défaut d'un chart ?
  2. [ ] A. Chart.yaml
  3. [ ] B. values.yaml

  4. [ ] C. templates/

  5. Quelle commande prévisualise le YAML généré ?

  6. [ ] A. helm show
  7. [ ] B. helm template
  8. [ ] C. helm install --dry-run

Réponses : 1-B, 2-B (ou C pour dry-run)

Précédent : Module 8 - Observabilité

Suivant : Module 10 - GitOps
← Module 8 : Observabilité Module 10 : GitOps et CI/CD →

Retour au Programme
