Module 10 : GitOps et CI/CD

Objectifs du Module

Comprendre les principes GitOps
Déployer et configurer ArgoCD
Implémenter Flux CD
Configurer des pipelines CI/CD

Durée : 4 heures

1. Principes GitOps

1.1 Concept

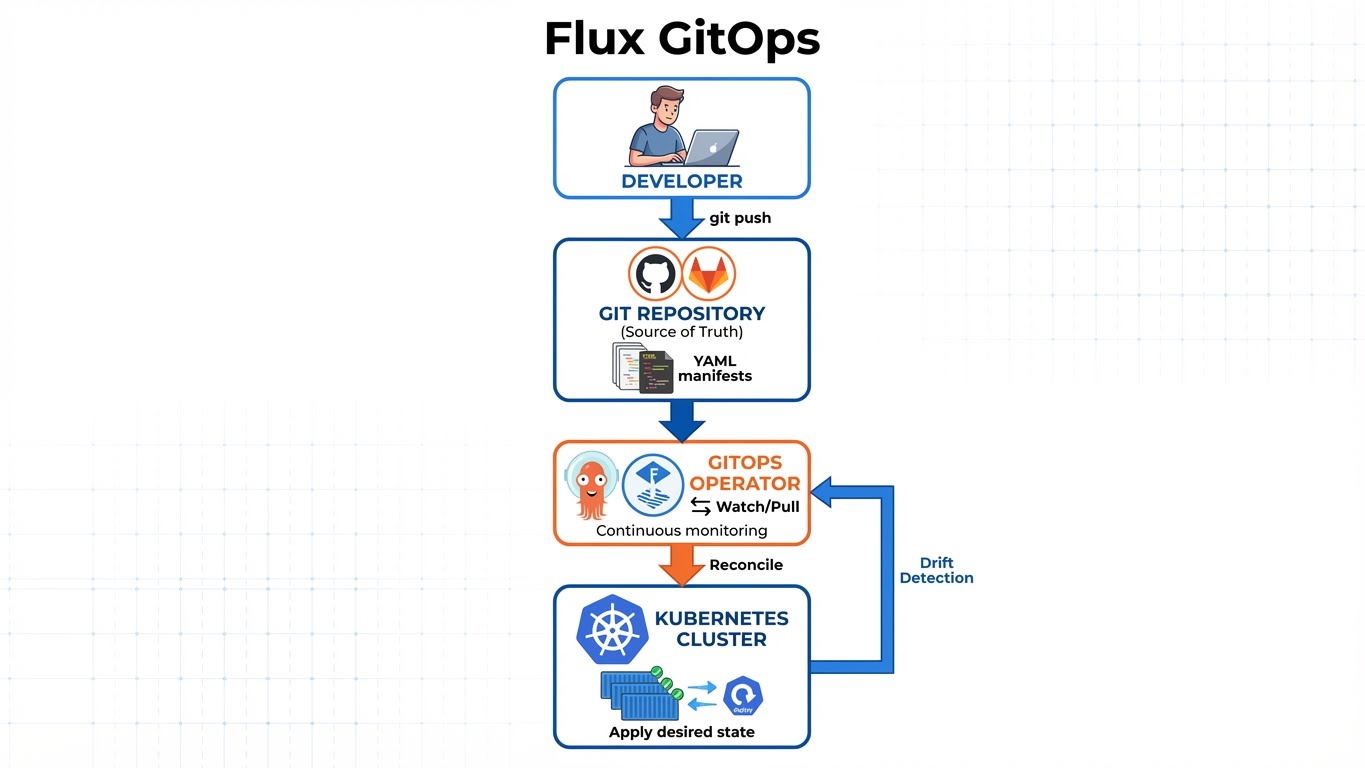

Flux GitOps

Principes GitOps :

DÉCLARATIF : L'état désiré est décrit de manière déclarative
VERSIONNÉ : Git comme source de vérité unique
AUTOMATISÉ : Changements appliqués automatiquement
RÉCONCILIATION CONTINUE : Agents assurent que l'état réel = état désiré

2. ArgoCD

2.1 Installation

# Créer le namespace
kubectl create namespace argocd

# Installer ArgoCD
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

# Attendre que les pods soient prêts
kubectl wait --for=condition=Ready pods --all -n argocd --timeout=300s

# Récupérer le mot de passe admin
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

# Exposer l'UI
kubectl port-forward svc/argocd-server -n argocd 8080:443

# Installer le CLI
curl -sSL -o argocd https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64
chmod +x argocd && sudo mv argocd /usr/local/bin/

# Login CLI
argocd login localhost:8080

2.2 Application ArgoCD

# application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: myapp
  namespace: argocd
spec:
  project: default

  source:
    repoURL: https://github.com/myorg/myapp-manifests.git
    targetRevision: main
    path: k8s/overlays/production

  destination:
    server: https://kubernetes.default.svc
    namespace: production

  syncPolicy:
    automated:
      prune: true        # Supprimer les ressources orphelines
      selfHeal: true     # Réconcilier si drift détecté
      allowEmpty: false
    syncOptions:
      - CreateNamespace=true
      - PruneLast=true
    retry:
      limit: 5
      backoff:
        duration: 5s
        factor: 2
        maxDuration: 3m

2.3 Application avec Helm

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: myapp-helm
  namespace: argocd
spec:
  project: default

  source:
    repoURL: https://github.com/myorg/helm-charts.git
    targetRevision: main
    path: charts/myapp
    helm:
      valueFiles:
        - values-production.yaml
      parameters:
        - name: image.tag
          value: "v2.0.0"

  destination:
    server: https://kubernetes.default.svc
    namespace: production

  syncPolicy:
    automated:
      prune: true
      selfHeal: true

2.4 ApplicationSet

# Déployer sur plusieurs clusters/environnements
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: myapp-multi-env
  namespace: argocd
spec:
  generators:
    - list:
        elements:
          - env: staging
            cluster: staging-cluster
            revision: develop
          - env: production
            cluster: production-cluster
            revision: main

  template:
    metadata:
      name: 'myapp-{{env}}'
    spec:
      project: default
      source:
        repoURL: https://github.com/myorg/myapp.git
        targetRevision: '{{revision}}'
        path: k8s/overlays/{{env}}
      destination:
        server: '{{cluster}}'
        namespace: '{{env}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

3. Flux CD

3.1 Installation

# Installer Flux CLI
curl -s https://fluxcd.io/install.sh | sudo bash

# Bootstrap Flux sur le cluster
flux bootstrap github \
  --owner=myorg \
  --repository=fleet-infra \
  --branch=main \
  --path=clusters/production \
  --personal

# Vérifier
flux check
kubectl get all -n flux-system

3.2 GitRepository

# Source Git
apiVersion: source.toolkit.fluxcd.io/v1
kind: GitRepository
metadata:
  name: myapp
  namespace: flux-system
spec:
  interval: 1m
  url: https://github.com/myorg/myapp
  ref:
    branch: main
  secretRef:
    name: github-token  # Si repo privé

3.3 Kustomization

# Déploiement avec Kustomize
apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: myapp
  namespace: flux-system
spec:
  interval: 10m
  sourceRef:
    kind: GitRepository
    name: myapp
  path: ./k8s/overlays/production
  prune: true
  targetNamespace: production
  healthChecks:
    - apiVersion: apps/v1
      kind: Deployment
      name: myapp
      namespace: production

3.4 HelmRelease

# Déploiement avec Helm
apiVersion: helm.toolkit.fluxcd.io/v2beta1
kind: HelmRelease
metadata:
  name: myapp
  namespace: production
spec:
  interval: 5m
  chart:
    spec:
      chart: myapp
      version: "1.0.0"
      sourceRef:
        kind: HelmRepository
        name: myrepo
        namespace: flux-system
  values:
    replicaCount: 3
    image:
      tag: v2.0.0
  upgrade:
    remediation:
      retries: 3

4. Kustomize

4.1 Structure

myapp/
├── base/
│   ├── kustomization.yaml
│   ├── deployment.yaml
│   ├── service.yaml
│   └── configmap.yaml
└── overlays/
    ├── staging/
    │   ├── kustomization.yaml
    │   └── replica-patch.yaml
    └── production/
        ├── kustomization.yaml
        ├── replica-patch.yaml
        └── ingress.yaml

4.2 Base

# base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - deployment.yaml
  - service.yaml
  - configmap.yaml

commonLabels:
  app: myapp

4.3 Overlay

# overlays/production/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: production

resources:
  - ../../base
  - ingress.yaml

patches:
  - path: replica-patch.yaml

images:
  - name: myapp
    newTag: v2.0.0

configMapGenerator:
  - name: app-config
    behavior: merge
    literals:
      - LOG_LEVEL=warn

# overlays/production/replica-patch.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp
spec:
  replicas: 5

# Prévisualiser
kubectl kustomize overlays/production

# Appliquer
kubectl apply -k overlays/production

5. Pipeline CI/CD

5.1 GitHub Actions

# .github/workflows/deploy.yaml
name: Deploy to Kubernetes

on:
  push:
    branches: [main]

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Build and push image
        run: |
          docker build -t myorg/myapp:${{ github.sha }} .
          docker push myorg/myapp:${{ github.sha }}

      - name: Update manifests
        run: |
          cd k8s/overlays/production
          kustomize edit set image myorg/myapp:${{ github.sha }}

      - name: Commit and push
        run: |
          git config user.name github-actions
          git config user.email github-actions@github.com
          git add .
          git commit -m "Update image to ${{ github.sha }}"
          git push

5.2 GitLab CI

# .gitlab-ci.yml
stages:
  - build
  - deploy

build:
  stage: build
  script:
    - docker build -t $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA .
    - docker push $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA

deploy:
  stage: deploy
  script:
    - |
      cd k8s/overlays/production
      kustomize edit set image myapp=$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA
      git add .
      git commit -m "Deploy $CI_COMMIT_SHA"
      git push origin main
  only:
    - main

6. Exercice : À Vous de Jouer

Mise en Pratique

Objectif : Mettre en place un pipeline GitOps complet avec ArgoCD pour déployer une application sur plusieurs environnements

Contexte : Votre équipe souhaite adopter GitOps pour gérer les déploiements d'une application microservices. Vous devez configurer ArgoCD pour déployer automatiquement l'application "ShopAPI" sur trois environnements (dev, staging, production) à partir d'un repository Git, en utilisant Kustomize pour gérer les différences de configuration.

Tâches à réaliser :

Installer ArgoCD sur le cluster
Créer une structure Kustomize avec base + overlays (dev, staging, prod)
Créer des Applications ArgoCD pour chaque environnement
Configurer le sync automatique avec self-heal et prune
Créer un ApplicationSet pour gérer tous les environnements
Simuler un drift et observer la réconciliation automatique

Critères de validation :

[ ] ArgoCD est installé et accessible
[ ] Les 3 environnements sont déployés avec des configs différentes
[ ] Le sync automatique fonctionne (push Git → déploiement)
[ ] Le self-heal détecte et corrige les drifts
[ ] L'ApplicationSet gère les 3 environnements

Solution

Étape 1 : Installer ArgoCD

# Créer le namespace
kubectl create namespace argocd

# Installer ArgoCD
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

# Attendre que tous les pods soient prêts
kubectl wait --for=condition=Ready pods --all -n argocd --timeout=300s

# Récupérer le mot de passe admin initial
ARGOCD_PASSWORD=$(kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d)
echo "ArgoCD Admin Password: $ARGOCD_PASSWORD"

# Exposer l'UI (dans un terminal séparé)
kubectl port-forward svc/argocd-server -n argocd 8080:443

# Installer le CLI ArgoCD
curl -sSL -o argocd https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64
chmod +x argocd
sudo mv argocd /usr/local/bin/

# Login via CLI
argocd login localhost:8080 --username admin --password $ARGOCD_PASSWORD --insecure

# Changer le mot de passe (optionnel)
argocd account update-password

Étape 2 : Créer la Structure Kustomize

# Créer la structure (simulation - normalement dans un repo Git)
mkdir -p shopapi-manifests/{base,overlays/{dev,staging,production}}
cd shopapi-manifests

# base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - deployment.yaml
  - service.yaml
  - configmap.yaml

commonLabels:
  app: shopapi
  managed-by: argocd

# base/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: shopapi
spec:
  replicas: 2
  selector:
    matchLabels:
      app: shopapi
  template:
    metadata:
      labels:
        app: shopapi
    spec:
      containers:
        - name: api
          image: mycompany/shopapi:latest
          ports:
            - containerPort: 8080
              name: http
          env:
            - name: ENVIRONMENT
              valueFrom:
                configMapKeyRef:
                  name: shopapi-config
                  key: environment
            - name: LOG_LEVEL
              valueFrom:
                configMapKeyRef:
                  name: shopapi-config
                  key: log_level
          resources:
            requests:
              cpu: 100m
              memory: 128Mi
            limits:
              cpu: 500m
              memory: 256Mi
          livenessProbe:
            httpGet:
              path: /health
              port: 8080
            initialDelaySeconds: 30
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /ready
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

# base/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: shopapi
spec:
  selector:
    app: shopapi
  ports:
    - port: 80
      targetPort: 8080
      name: http
  type: ClusterIP

# base/configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: shopapi-config
data:
  environment: "base"
  log_level: "info"

Overlays par Environnement

# overlays/dev/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: dev

resources:
  - ../../base

patches:
  - patch: |-
      - op: replace
        path: /spec/replicas
        value: 1
    target:
      kind: Deployment
      name: shopapi

images:
  - name: mycompany/shopapi
    newTag: dev-latest

configMapGenerator:
  - name: shopapi-config
    behavior: merge
    literals:
      - environment=development
      - log_level=debug

# overlays/staging/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: staging

resources:
  - ../../base

patches:
  - patch: |-
      - op: replace
        path: /spec/replicas
        value: 2
    target:
      kind: Deployment
      name: shopapi

images:
  - name: mycompany/shopapi
    newTag: staging-v1.2.0

configMapGenerator:
  - name: shopapi-config
    behavior: merge
    literals:
      - environment=staging
      - log_level=info

# overlays/production/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: production

resources:
  - ../../base
  - ingress.yaml

patches:
  - patch: |-
      - op: replace
        path: /spec/replicas
        value: 5
    target:
      kind: Deployment
      name: shopapi
  - patch: |-
      - op: add
        path: /spec/template/spec/affinity
        value:
          podAntiAffinity:
            preferredDuringSchedulingIgnoredDuringExecution:
              - weight: 100
                podAffinityTerm:
                  labelSelector:
                    matchExpressions:
                      - key: app
                        operator: In
                        values:
                          - shopapi
                  topologyKey: kubernetes.io/hostname
    target:
      kind: Deployment
      name: shopapi

images:
  - name: mycompany/shopapi
    newTag: v1.2.0

configMapGenerator:
  - name: shopapi-config
    behavior: merge
    literals:
      - environment=production
      - log_level=warn

# overlays/production/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: shopapi
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: nginx
  tls:
    - hosts:
        - api.shop.example.com
      secretName: shopapi-tls
  rules:
    - host: api.shop.example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: shopapi
                port:
                  number: 80

Tester Kustomize localement

# Prévisualiser chaque environnement
kubectl kustomize overlays/dev
kubectl kustomize overlays/staging
kubectl kustomize overlays/production

# Vérifier les différences
kubectl kustomize overlays/dev > /tmp/dev.yaml
kubectl kustomize overlays/production > /tmp/prod.yaml
diff /tmp/dev.yaml /tmp/prod.yaml

Étape 3 : Créer les Applications ArgoCD (Méthode 1 - Manuel)

# argocd/dev-application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: shopapi-dev
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default

  source:
    repoURL: https://github.com/myorg/shopapi-manifests.git
    targetRevision: main
    path: overlays/dev

  destination:
    server: https://kubernetes.default.svc
    namespace: dev

  syncPolicy:
    automated:
      prune: true        # Supprimer ressources orphelines
      selfHeal: true     # Réconcilier automatiquement les drifts
      allowEmpty: false
    syncOptions:
      - CreateNamespace=true
      - PruneLast=true
    retry:
      limit: 5
      backoff:
        duration: 5s
        factor: 2
        maxDuration: 3m

# argocd/staging-application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: shopapi-staging
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default

  source:
    repoURL: https://github.com/myorg/shopapi-manifests.git
    targetRevision: main
    path: overlays/staging

  destination:
    server: https://kubernetes.default.svc
    namespace: staging

  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
      - PruneLast=true

# argocd/production-application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: shopapi-production
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default

  source:
    repoURL: https://github.com/myorg/shopapi-manifests.git
    targetRevision: main
    path: overlays/production

  destination:
    server: https://kubernetes.default.svc
    namespace: production

  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
      - PruneLast=true

# Appliquer les Applications
kubectl apply -f argocd/dev-application.yaml
kubectl apply -f argocd/staging-application.yaml
kubectl apply -f argocd/production-application.yaml

# Vérifier via CLI
argocd app list
argocd app get shopapi-dev
argocd app get shopapi-staging
argocd app get shopapi-production

# Forcer un sync manuel (si nécessaire)
argocd app sync shopapi-dev

Étape 4 : ApplicationSet (Méthode 2 - Recommandée)

# argocd/shopapi-applicationset.yaml
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: shopapi
  namespace: argocd
spec:
  generators:
    - list:
        elements:
          - env: dev
            replicas: "1"
            namespace: dev
            revision: main
          - env: staging
            replicas: "2"
            namespace: staging
            revision: main
          - env: production
            replicas: "5"
            namespace: production
            revision: main

  template:
    metadata:
      name: 'shopapi-{{env}}'
      namespace: argocd
      finalizers:
        - resources-finalizer.argocd.argoproj.io
    spec:
      project: default

      source:
        repoURL: https://github.com/myorg/shopapi-manifests.git
        targetRevision: '{{revision}}'
        path: 'overlays/{{env}}'

      destination:
        server: https://kubernetes.default.svc
        namespace: '{{namespace}}'

      syncPolicy:
        automated:
          prune: true
          selfHeal: true
          allowEmpty: false
        syncOptions:
          - CreateNamespace=true
          - PruneLast=true
        retry:
          limit: 5
          backoff:
            duration: 5s
            factor: 2
            maxDuration: 3m

      # Health checks spécifiques
      ignoreDifferences:
        - group: apps
          kind: Deployment
          jsonPointers:
            - /spec/replicas  # Ignorer si HPA présent

# Appliquer l'ApplicationSet
kubectl apply -f argocd/shopapi-applicationset.yaml

# Vérifier que les 3 Applications sont créées
argocd app list
kubectl get applications -n argocd

# Voir les détails
argocd app get shopapi-dev
argocd app get shopapi-staging
argocd app get shopapi-production

Étape 5 : Tester le Sync Automatique

# Simuler un changement dans Git (modifier l'image tag)
# Dans overlays/dev/kustomization.yaml, changer:
# newTag: dev-latest → newTag: dev-v1.2.1

# Push vers Git
git add .
git commit -m "Update dev image to v1.2.1"
git push

# Observer le sync automatique (30-60 secondes)
argocd app get shopapi-dev --watch

# Voir les logs de sync
argocd app logs shopapi-dev --follow

Étape 6 : Tester le Self-Heal (Drift Detection)

# Simuler un drift en modifiant manuellement le Deployment
kubectl scale deployment shopapi -n dev --replicas=5

# ArgoCD détecte le drift (OutOfSync)
argocd app get shopapi-dev

# Après quelques secondes, self-heal restaure l'état désiré (1 replica)
kubectl get deployment shopapi -n dev --watch

# Vérifier que le drift a été corrigé
argocd app get shopapi-dev
# Status: Synced, Healthy

# Voir l'historique des syncs
argocd app history shopapi-dev

Validation Complète

# 1. Vérifier ArgoCD
kubectl get all -n argocd
argocd version

# 2. Vérifier toutes les Applications
argocd app list
argocd app get shopapi-dev
argocd app get shopapi-staging
argocd app get shopapi-production

# 3. Vérifier les déploiements
kubectl get all -n dev
kubectl get all -n staging
kubectl get all -n production

# 4. Vérifier les différences de config
kubectl get deployment shopapi -n dev -o yaml | grep replicas
kubectl get deployment shopapi -n staging -o yaml | grep replicas
kubectl get deployment shopapi -n production -o yaml | grep replicas

kubectl get configmap shopapi-config -n dev -o yaml
kubectl get configmap shopapi-config -n production -o yaml

# 5. Vérifier l'Ingress (prod seulement)
kubectl get ingress -n production

# 6. Test de bout en bout
kubectl run test --rm -it --image=curlimages/curl -n dev -- sh
# Dans le pod: curl http://shopapi/health

# 7. Voir l'état dans l'UI ArgoCD
# Ouvrir http://localhost:8080
# Login: admin / <password>

# 8. Tester un rollback
argocd app rollback shopapi-dev 1

# 9. Vérifier les métriques ArgoCD
kubectl get servicemonitor -n argocd

Commandes Utiles pour le Debug

# Voir les logs ArgoCD
kubectl logs -n argocd -l app.kubernetes.io/name=argocd-application-controller

# Voir les événements
kubectl get events -n argocd --sort-by=.lastTimestamp

# Refresh manuel (forcer la détection)
argocd app get shopapi-dev --refresh

# Diff entre Git et Cluster
argocd app diff shopapi-dev

# Manifests générés
argocd app manifests shopapi-dev

# Désactiver le sync auto temporairement
argocd app set shopapi-dev --sync-policy none

# Réactiver
argocd app set shopapi-dev --sync-policy automated --auto-prune --self-heal

Quiz

Quel est le principe fondamental de GitOps ?
[ ] A. Push vers le cluster
[ ] B. Git comme source de vérité
[ ] C. Déploiement manuel
Quel outil permet de personnaliser les manifests par environnement ?
[ ] A. Helm uniquement
[ ] B. Kustomize
[ ] C. kubectl

Réponses : 1-B, 2-B

Précédent : Module 9 - Helm

Suivant : Module 11 - Troubleshooting


← Module 9 : Helm et Packaging	Module 11 : Opérations et Troubleshoo... →

Retour au Programme
